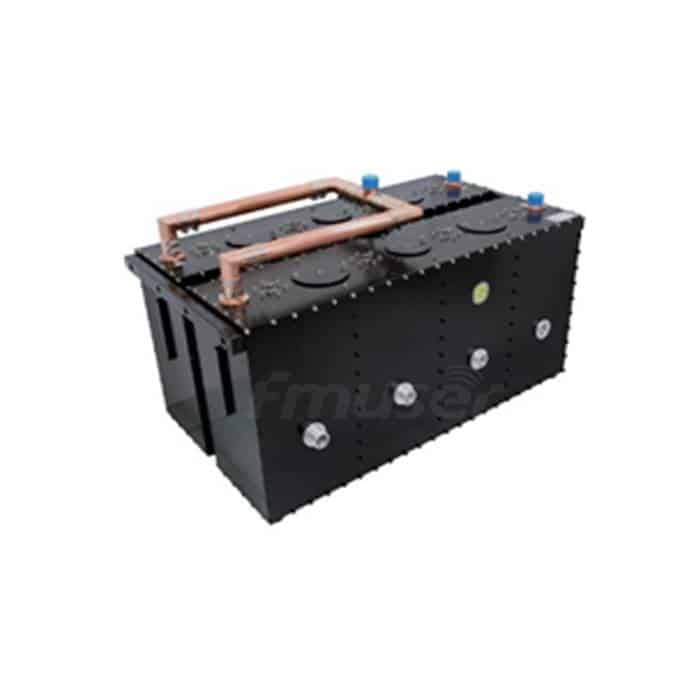

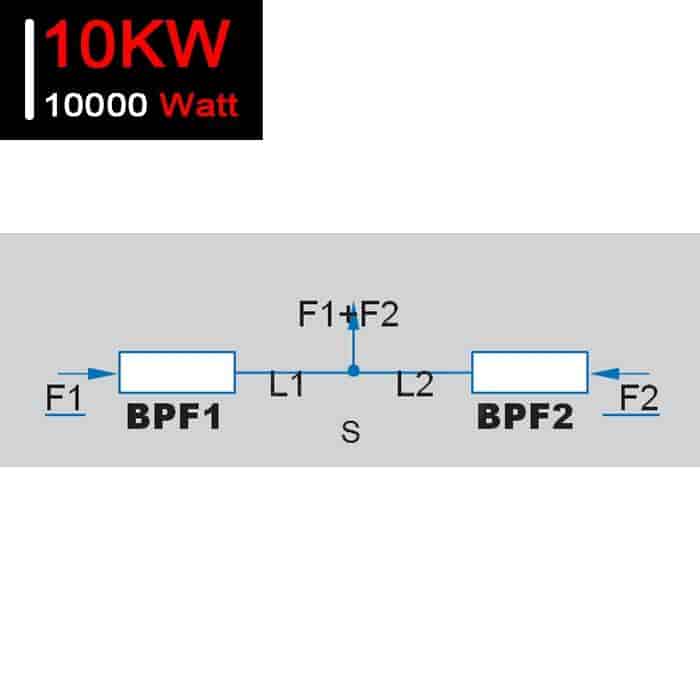

167-223 MHz 1 5/8 "4 Cav. VHF Starpoint 10kW Transmitter Combiner Compact Cavity Duplexer rau VHF Combiner Multicoupler System
NTA
- Nqe (USD): Thov hu rau peb
- Qty (PCS): 1
- Shipping (USD): Thov hu rau peb
- Tag Nrho (USD): Thov hu rau peb
- Shipping Method: DHL, FedEx, UPS, EMS, Los ntawm Hiav Txwv, Los ntawm Cua
- Kev Them Nyiaj: TT (Kev Them Nyiaj Txiag), Western Union, Paypal, Payoneer
Main nta
- Tooj liab, nyiaj-plated tooj dag, thiab zoo aluminium alloy
- 3-kab noj hniav, 4-kab noj hniav, los yog 6-kab kab noj hniav lim
- Tsawg qhov ntxig poob thiab VSWR
- Kev sib cais siab
- compact tsim
- Qhov zoo tshaj plaws uas tsis tshua muaj nqi tshaj tawm kev daws teeb meem rau cov peev nyiaj yuav khoom
- Kev tsim kho thiab ntau yam qauv tsim rau kev tshaj tawm xov xwm
- compact tsim
High Quality Transmitter Combiners Kuj tseem nyob hauv Tshuag
Starpoint (Branched) VHF Combiners Txog 20kW:
- 4o6 cav. 7/16 DIN 1kW Starpoint VHF Transmitter Combiner
- 1 5/8" 4/6 Cav. 3kW VHF Starpoint Transmitter Combiner
- 4o6 cav. 1 5/8 "6kW VHF Starpoint Transmitter Combiner
Balanced (CIB) VHF Combiners Up tp 10kW:
- 1 5/8 "3 los yog 4 Cav. 15kW Balanced VHF Transmitter Combiner
- 1 5/8 "3 los yog 4 Cavity 15kW VHF Transmitter Combiner
- 3 1/8 "24kW VHF 6 Cavity Digital Balanced VHF Transmitter Combiner
- 3 1/8 "3 los yog 4 Cav. 40kW Balanced VHF Transmitter Combiner
Nrhiav rau ntau transmitter combiners rau koj qhov chaw tshaj tawm? Tshawb xyuas cov no!
FM sib txuas | VHF Combiners | UHF Combiners | L Band Kev Sib Txuas Lus |
- 10kW Starpoint VHF TV Combiner x 1PCS
Thov hu rau peb kom paub ntxiv

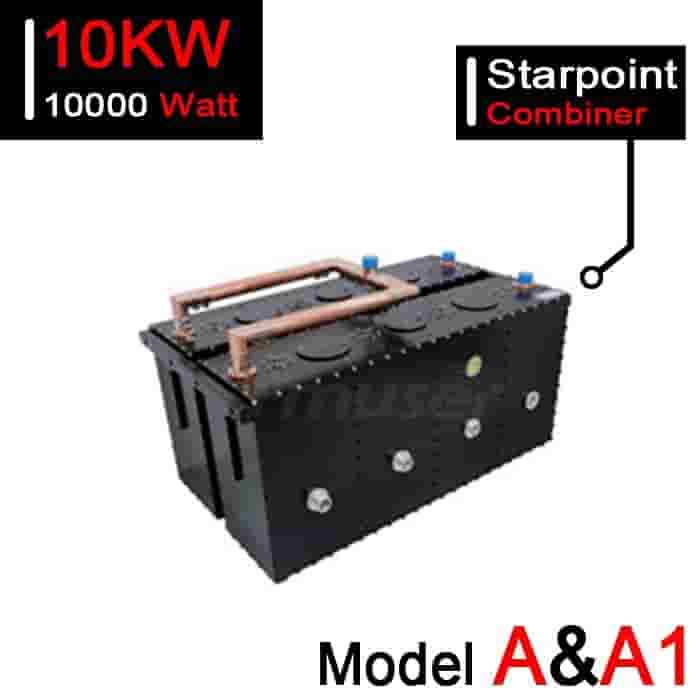

qauv |
A |
A1 |
|
---|---|---|---|
configuration |
Starpoint |
Starpoint |
|
zaus khwv |
167-223 MHz |
167-223 MHz |
|
Min. Qhov Sib Nqus Zaus |
4 |
2 |
|
Narrowband tswv yim |
|||
Max. Tswv yim fais fab |
2 × 5 kW |
2 × 5 kW |
|
VSWR |
≤ 1.1 |
≤ 1.1 |
|
Tso tsis tau |
f0 |
0.10 dB |
0.15 dB |
f0 ± 4MHz |
0.10 dB |
0.20 dB |
|
f0 ± 12MHz |
≥ 10 dB cov |
≥ 20 dB cov |
|
f0 ± 20MHz |
≥ 20 dB cov |
≥ 35 dB cov |
|
Kev rho tawm ntawm cov khoom siv |
≥ 45 dB cov |
≥ 40 dB cov |
|
connectors |
1 5/8" |
1 5/8" |
|
Tus naj npawb ntawm cov kab noj hniav |
3 |
4 |
|
Qhov ntev |
L × 880 × H hli |
L × 1145 × H hli |
|
Nyhav |
~ 87 kg |
~ 112 kg |
|
Daim ntawv ceeb toom: * L thiab H nyob ntawm cov channel. |
▲ Rov qab mus rau Cov Ntsiab Lus ▲
Ob Qhov laj thawj yog vim li cas RF Combiner siv
Tsis txaus ntawm qhov chaw tseem ceeb
Raws li cov neeg tsiv teb tsaws chaw mus rau thaj chaw hauv nroog, nws tau dhau los ua qhov xav tau los tsim cov chaw tshaj tawm xov xwm loj uas tuaj yeem ncav cuag cov neeg coob coob los ntawm ntau qhov chaw nruab nrab. Tau kawg, cov chaw tseem ceeb no tau dhau los ua qhov tseem ceeb, yog li nws ua rau kev nkag siab siv txhua qhov chaw kom nws lub peev xwm tag nrho. Qhov no tuaj yeem ua tau zoo tshaj plaws los ntawm kev sib koom ntawm qhov chaw xa khoom thiab ib lub kav hlau txais xov ntawm ntau tus neeg siv. Yuav kom ua tiav qhov no, kev tshaj tawm kev lag luam siv cov khoom sib txuas ntawm ntau hom thiab ntau thiab tsawg. Piv txwv li, nyob rau hauv San Francisco (Mt. Sutro), Toronto (CN Tower), Montreal (Mt. Royal), New York City (Empire State Building), thiab Chicago (John Hancock thiab Sears Buildings), siab ntauwd lossis yees ntawm skyscrapers. tau siv los sib sau ua ke ntau qhov chaw tshaj tawm raws li qhov ua tau, suav nrog VHF-TV, UHF-TV, FM thiab kev pabcuam kev sib txuas lus hauv av. Txoj hauv kev no tau ua pov thawj zoo heev, tsis yog siv cov vaj tsev hauv kev lag luam nkaus xwb tab sis kuj nthuav tawm cov nqi ntau dua rau ntau tus neeg siv.
Pawg tswv cuab ntawm FM chaw nres tsheb hauv kev lag luam tau ua rau muaj kev loj hlob ntawm cov chaw nres tsheb sib xyaw. Thiab nrog kev siv ntawm DTV systems, FM chaw nres tsheb tau raug yuam tawm ntawm cov yees uas twb muaj lawm, ua rau nws tseem ceeb tshaj uas lawv sib koom ntau qhov chaw, uas ua rau qhov kev thov rau kev sib koom ua ke.
Cov Kev Xav Tau ntawm FCC Kev rho tawm
Thaum ntau tshaj ib lub teeb liab tau tshaj tawm hauv ib lub kav hlau txais xov, cov teeb liab yuav tsum tau muab tso ua ke hauv txoj hauv kev uas tsis muaj caij nyoog rau cov teeb liab los tawm tswv yim rau ib leeg lub transmitters. Kev ua tsis tiav yuav tso cai rau cov khoom sib txuas ua ke tsim nyob rau hauv cov theem kawg amplifier ntawm cov transmitters thiab tshaj tawm hauv lub kav hlau txais xov. Cov khoom lag luam intermodulation no feem ntau hu ua "spurs." Spurs tsim los ntawm FM chaw nres tsheb tuaj yeem tshwm sim tsis yog hauv FM band nkaus xwb tab sis kuj nyob rau hauv qis qis VHF raws thiab saum toj kawg nkaus FM band ua rau cuam tshuam rau lub dav hlau band. Tsis tas li ntawd, FCC Txoj Cai 73.317(d) qhia tias spurs ntau tshaj G00 kHz tshem tawm ntawm cov cab kuj yuav tsum tau attenuated hauv qab cov cab kuj zaus los ntawm 80 dB los yog los ntawm 43 + 10log10 (lub hwj chim nyob rau hauv watts) dB, qhov twg tsawg dua. Hauv kev xyaum, cov chaw nres tsheb khiav lag luam tso tawm lub zog ntawm 5 kW lossis ntau dua yuav tsum tau ua raws li qhov yuav tsum tau ua 80 dB, thaum cov chaw nres tsheb khiav qis dua TPOs (transmitter power outputs) poob rau hauv txoj kev suav.
Kev paub dhau los tau qhia tias txhawm rau tiv thaiv spurs, txhua lub tshuab xa tawm yuav tsum raug cais tawm ntawm txhua tus neeg hauv lub cev los ntawm qhov tsawg kawg nkaus ntawm 40 dB, nrog 4G txog 50 dB kom ntseeg tau tias kev ua raws cai. Spur attenuation yog ua tiav los ntawm kev sib xyaw ua ke ntawm transmitter tig-around poob thiab lim. Tig-around poob yog qhov muaj nyob rau hauv txoj kev spurs raug tsim nyob rau hauv lub transmitter. Cov kev poob no feem ntau khiav hauv G-13 dB ntau yam rau cov raj-hom transmitters, thaum 15-25 dB yog qhov zoo rau cov khoom hauv xeev. Lub teeb liab tawm zaus yog attenuated 40 dB raws li nws dhau los ntawm cov lim bandpass ntawm cov khoom siv sib txuas mus rau lub transmitter nrog lub spur nws tsim tawm ntawm lub transmitter ntxiv G-25 dB hauv qab ntawm theem teeb liab nkag. Qhov no spur yog ces attenuated 40 dB raws li nws rov qab los ntawm bandpass lim. Qhov tshwm sim yog spur attenuation tsawg kawg yog 80 dB, nrog rau 100 dB lossis ntau dua.
Nyob rau hauv lub ntiaj teb no niaj hnub no, lub mixer tau dhau los ua ib feem tseem ceeb ntawm cov xov tooj cua tshaj tawm. Nws yog ib qho tseem ceeb kom paub tias nws yog technical thiab complexity. Raws li qhov zoo thiab qhov tsis zoo ntawm kev sib dhos, tus tsim qauv yuav tsum xaiv cov kev siv tshwj xeeb. Kev txhim kho thiab kho cov kev sib dhos kom raug hla koj lub teeb liab mus rau cov neeg tuaj saib nyob deb, thiab kev siv tsis raug ntawm cov ntoo khaub lig tuaj yeem ua rau muaj kev cuam tshuam, ua rau muaj kev noj qab haus huv ntawm lub tshuab xa tawm.
▲ Rov qab mus rau Cov Ntsiab Lus ▲
Vim li cas kuv RF kev sib txuas nres ua haujlwm
Tom qab xyoo ntawm kev soj ntsuam tas li los ntawm FMUSER cov kws tshaj lij pab pawg, peb pom tias qhov ua txhaum ntau ntawm cov multiplexer yog tias qhov nqus tsis kam yog hlawv tawm.
Hauv qee qhov chaw huab cua phem (xws li nag xob nag cua), lub tshuab feeder ntawm lub tshuab ua ke yog qhov yooj yim dua rau kev cuam tshuam ntawm xob laim. Lub sijhawm no, RF cov khoom sib txuas tau raug cua daj cua dub, nws yuav tsum tsis ua haujlwm, nrog rau kev kub nyhiab ntawm ntau ceg feeders. Ob peb lub transmitters yuav muaj kev xav ntau dhau thiab kev poob siab, thiab qhov nqus tau kuj tseem tuaj yeem raug hlawv. Txoj kev daws teeb meem zoo tshaj plaws yog los hloov qhov nqus resistor.
Nws yog ib qho tsim nyog sau cia tias muaj ntau qhov laj thawj los piav qhia tias vim li cas koj lub RF sib txuas tsis ua haujlwm, uas yuav tsum muaj cov kws tshaj lij RF kho nws txawv thiab tshem tawm qhov txhaum. Ua tib zoo saib thaum lub feeder tsis ua haujlwm lossis qhov kev xav ntawm lub transmitter nce. Thov tshawb xyuas lub sij hawm seb lub RF sib txuas puas muaj qhov txawv txav ntawm qhov kub thiab txias thiab seb qhov nqus dej tsis zoo li qub.
▲ Rov qab mus rau Cov Ntsiab Lus ▲
Plaub Qhov laj thawj ntxiv los piav qhia yog vim li cas koj lub RF Combiner tsis ua haujlwm
Thaum lub sijhawm ua haujlwm niaj hnub, peb kuj pom tias qhov kev nqus tsis haum tau puas lawm thiab tus nqi kuj tau loj dua. Hauv nruab nrab ntawm kev ua haujlwm, peb tsis pom tias lub tshuab xa tawm tau cuam tshuam ntau dhau lossis poob siab, thiab VSWR ntawm lub kav hlau txais xov feeder kuj zoo li qub. Qhov no tau tshwm sim ntau zaus. Tom qab ua tib zoo tshuaj xyuas, nws ntseeg tau tias cov laj thawj yuav muaj ntau yam. Qhov tshwm sim yog raws li nram no.
- Yog tias tus kav hlau txais xov feeder yog qhov txawv txav, nws yuav cuam tshuam rau kev ua haujlwm ntawm RF sib txuas. Piv txwv li, lub rwb thaiv tsev tsis kam ntawm lub ntsiab feeder yuav ua me me; huab cua phem xws li los nag thiab daus yuav ua rau ib qho luv luv Circuit Court tam sim ntawd, qhib Circuit Court, thiab ib tug tsis zoo sawv yoj piv rau tus kav hlau txais xov, tag nrho cov no yuav ua rau ib co hwj chim rov qab.
- Qhov Performance index ntawm RF combiner ua phem dua, kev sib cais ntawm 3dB directional coupler ua qis, thiab bandpass lim yuav dav. Raws li lub hauv paus ntsiab lus, peb paub tias yuav muaj qee qhov xau ntawm qhov kawg ntawm kev sib cais ntawm 3dB directional coupler, thiab nws yog tsis yooj yim sua rau bandpass lim kom muaj kev cuam tshuam cov teeb liab tawm ntawm-band kiag li. Thaum lub hwj chim mus rau qhov kev sib cais kawg yog qhov loj heev kom tshaj qhov ntsuas lub zog ntawm qhov nqus dej, qhov kub ntawm qhov nqus dej yuav nce thiab hlawv thaum kawg.
- Yog tias qhov kev hloov pauv loj dhau, qhov bandwidth ntawm RF teeb liab yuav loj dua, thiab lub zog xau mus rau qhov nqus resistor nce. Lub transmitter exciter feem ntau tsis txwv, thiab kev hloov kho thaum ntxov yog feem ntau ntau dua 130%.
- Qee lub zog yuav raug xa mus rau qhov nqus ntawm qhov nqus vim qhov resonance zaus offset ntawm band-pass lim, cab kuj zaus offset ntawm lub transmitter, impedance mismatch ntawm RF combiner thiab kav hlau txais xov, thiab lwm yam.
Cov lus qhia los ntawm FMUSER: qhov kev puas tsuaj ntawm qhov nqus tsis kam tuaj yeem tshwm sim los ntawm ib lossis ntau qhov laj thawj. Yog tias qhov kev nqus tsis haum tsis hloov lub sijhawm, lub zog los ntawm qhov nqus resistor yuav tshwm sim hauv lub transmitter, uas yuav ua rau muaj kev phom sij ntau dua.
