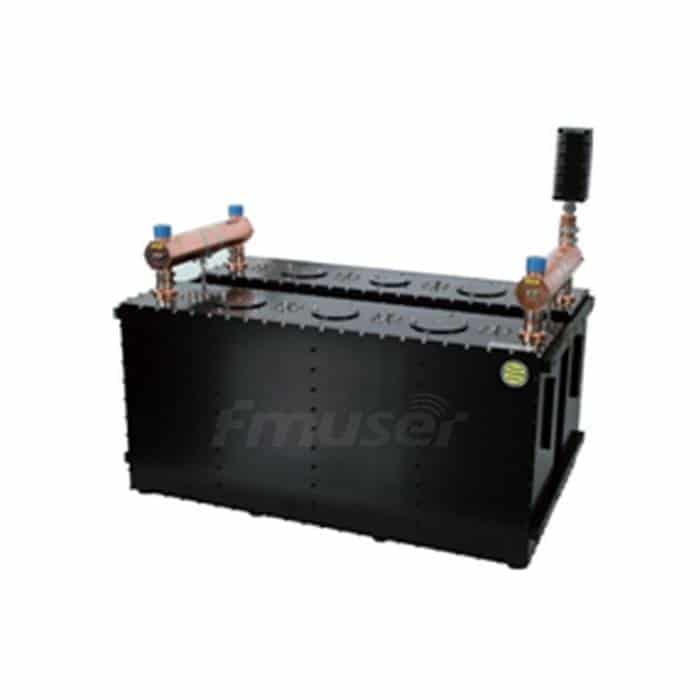

167-223 MHz 1 5/8 "3 los yog 4 Cav. 15kW Balanced VHF Transmitter Combiner Compact Radio Combiner VHF Cavity Duplexer rau TV Chaw Nres Tsheb
NTA
- Nqe (USD): Thov hu rau peb
- Qty (PCS): 1
- Shipping (USD): Thov hu rau peb
- Tag Nrho (USD): Thov hu rau peb
- Shipping Method: DHL, FedEx, UPS, EMS, Los ntawm Hiav Txwv, Los ntawm Cua
- Kev Them Nyiaj: TT (Kev Them Nyiaj Txiag), Western Union, Paypal, Payoneer
Main nta
- Tooj liab, nyiaj-plated tooj dag, thiab zoo aluminium alloy
- 3-kab noj hniav los yog 4-kab kab noj hniav lim
- Tsawg qhov ntxig poob thiab VSWR
- Kev sib cais siab
- compact tsim
- Yooj yim rau kev sib koom ua ke ntau zaus
- Kev tsim qauv tsim, ntau yam qauv, thiab lub zog sib xyaw ua ke
High Quality Transmitter Combiners Kuj tseem nyob hauv Tshuag
Starpoint (Branched) VHF Combiners Txog 20kW:
- 4o6 cav. 7/16 DIN 1kW Starpoint VHF Transmitter Combiner
- 1 5/8" 4/6 Cav. 3kW VHF Starpoint Transmitter Combiner
- 4o6 cav. 1 5/8 "6kW VHF Starpoint Transmitter Combiner
- 1 5/8" 4 Cav. VHF Starpoint 10kW Transmitter Combiner
Balanced (CIB) VHF Combiners Up tp 10kW:
- 1 5/8 "3 los yog 4 Cavity 15kW VHF Transmitter Combiner
- 3 1/8 "24kW VHF 6 Cavity Digital Balanced VHF Transmitter Combiner
- 3 1/8 "3 los yog 4 Cav. 40kW Balanced VHF Transmitter Combiner
Nrhiav rau ntau transmitter combiners rau koj qhov chaw tshaj tawm? Tshawb xyuas cov no!
FM sib txuas | VHF Combiners | UHF Combiners | L Band Kev Sib Txuas Lus |

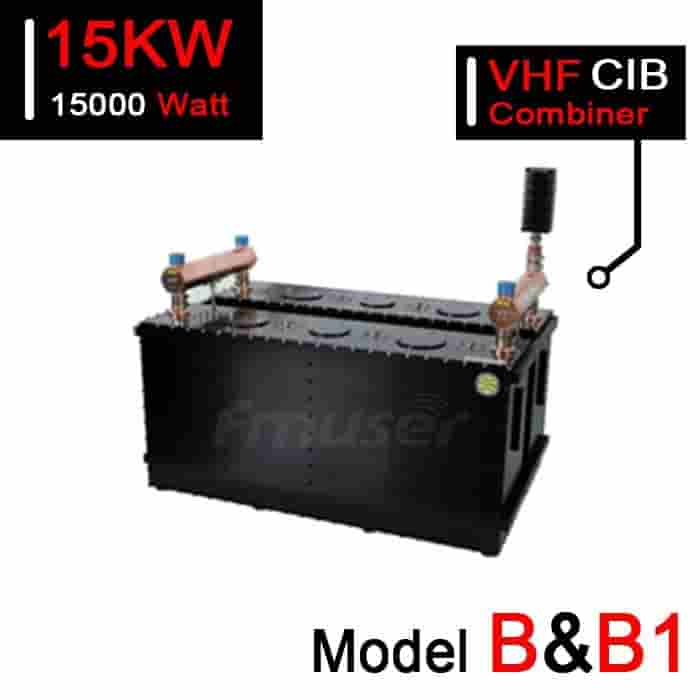

- 15kW Banlanced VHF TV Combiner x 1PCS
Thov hu rau peb kom paub ntxiv
qauv |
B |
B1 |
|
---|---|---|---|
configuration |
IPC |
IPC |
|
zaus khwv |
167-223 MHz |
167-223 MHz |
|
Min. Qhov Sib Nqus Zaus |
2 |
1 | |
Narrowband tswv yim |
|||
Max. Tswv yim fais fab |
10 kW * |
10 kW * |
|
VSWR |
≤ 1.1 |
≤ 1.1 |
|
Tso tsis tau |
f0 |
0.10 dB |
0.15 dB |
f0 ± 4MHz |
0.10 dB |
0.20 dB |
|
f0 ± 12MHz |
≥ 10 dB cov |
≥ 20 dB cov |
|
f0 ± 20MHz |
≥ 20 dB cov |
≥ 35 dB cov |
|
NB to WB isolation |
≥ 35 dB cov |
≥ 35 dB cov |
|
Wideband tswv yim |
|||
Max. Tswv yim fais fab |
15 kW * |
15 kW * |
|
VSWR |
≤ 1.1 |
≤ 1.1 |
|
Tso tsis tau |
0.1 dB |
0.1 dB |
|
WB to NB isolation |
≥ 50 dB cov |
≥ 50 dB cov |
|
connectors |
1 5 / 8 " |
1 5 / 8 " |
|
Tus naj npawb ntawm cov kab noj hniav |
3 |
4 |
|
Qhov ntev |
860 × 675 × 990 mm |
1130 × 675 × 990 mm |
|
Nyhav |
~ 96 kg |
~ 127 kg |
|
Daim ntawv ceeb toom: * Cov txiaj ntsig ntawm NB thiab WB lub zog hluav taws xob yuav tsum tsawg dua 15 kW. |
