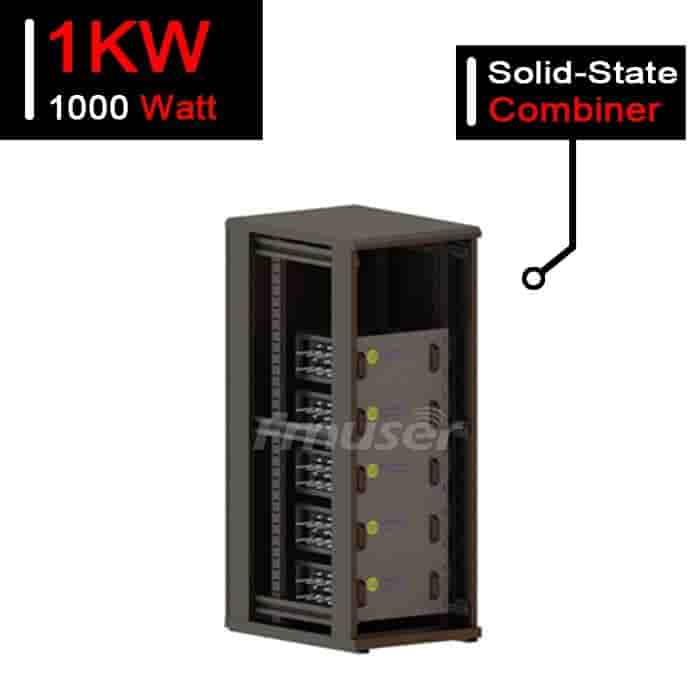

470-862 MHz 7/16 DIN 1kW Khoom Lub Xeev UHF Transmitter Combiner Starpoint Compact 1000W 6 Cavity Duplexer rau TV tshaj tawm
NTA
- Nqe (USD): Thov hu rau peb
- Qty (PCS): 1
- Shipping (USD): Thov hu rau peb
- Tag Nrho (USD): Thov hu rau peb
- Shipping Method: DHL, FedEx, UPS, EMS, Los ntawm Hiav Txwv, Los ntawm Cua
- Kev Them Nyiaj: TT (Kev Them Nyiaj Txiag), Western Union, Paypal, Payoneer
Main nta
- Tooj liab, nyiaj-plated tooj dag, thiab zoo aluminium alloy
- 6-kab kab noj hniav lim
- Tsawg qhov ntxig poob thiab VSWR
- Kev sib cais siab
- compact tsim
- Yooj yim rau kev sib koom ua ke ntau zaus
- Kev tsim qauv tsim, ntau yam qauv, thiab lub zog sib xyaw ua ke
- Qhov zoo tshaj plaws uas tsis tshua muaj nqi tshaj tawm kev daws teeb meem rau cov peev nyiaj yuav khoom
- Compact tsim nrog Txee hom
High Quality Transmitter Combiners Kuj tseem nyob hauv Tshuag
Starpoint (Branched) UHF Combiners Txog 20kW:
- 7/16 DIN 1 5/8 "3 1/8" 700W rau 6kW (customizable) Starpoint UHF Transmitter Combiner
- 15kW 20kW 3 1/8" 4 Cavity Starpoint UHF Transmitter Combiner
Balanced (CIB) UHF Combiners Up 120kW:
- 7/16 DIN 1kW DTV UHF Transmitter Combiner
- 1 5/8 "6kW 4 Txoj Kev DTV UHF transmitter Combiner
- 1 5/8 "6 Cavity 1kW DTV UHF Transmitter Combiner
- 8kW UHF 4 Cavity 1 5/8 "UHF Transmitter Combiner
- 1 5/8 "4 Cavity 8kW Balanced ATV UHF Transmitter Combiner
- 16kW 1 5/8" 3 1/8" Balanced CIB 6 Cavity UHF Transmitter Combiner
- 1 5/8 "3 1/8" 6-Cavity 16kW Balanced UHF Transmitter Combiner
- 3 1/8" 6 Cavity 25kW Balanced CIB UHF Transmitter Combiner
- 25kW 4 1/2 "Input 6 Cavity Solid State UHF Transmitter Combiner
Stretchline UHF Combiners:
Nrhiav rau ntau transmitter combiners rau koj qhov chaw tshaj tawm? Tshawb xyuas cov no!
 |
 |
|
 |
| FM sib txuas | VHF Combiners | UHF Combiners | L Band Kev Sib Txuas Lus |
- 1kW Solid-State UHF Starpoint Combiner x 1PCS
Thov hu rau peb kom paub ntxiv
|
qauv |
Solid State Combiner |
|
|---|---|---|
|
configuration |
IPC |
|
|
zaus khwv |
470-862 MHz |
|
|
Min. Qhov Sib Nqus Zaus |
0 |
|
|
Narrowband Input |
||
|
Max. Tswv yim fais fab |
0.7 kW RMS |
|
|
VSWR |
≤ 1.1 |
|
|
Tso tsis tau |
f0 |
0.70 dB |
|
f0 ± 3.8kHz |
1.80 dB |
|
|
f0 ± 4.2MHz |
≥ 4 dB cov |
|
|
f0 ± 6MHz |
≥ 20 dB cov |
|
|
f0 ± 12MHz |
≥ 40 dB cov |
|
|
NB to WB isolation |
≥ 35 dB cov |
|
| Wideband tswv yim | ||
|
Max. tawm tswv yim |
1 kW RMS |
|
|
VSWR |
≤ 1.1 |
|
|
zoo tsis |
0.1 dB |
|
|
WB to NB Isolation |
≥ 40 dB cov |
|
|
connectors |
7-16 IB |
|
|
Tus naj npawb ntawm cov kab noj hniav |
6 |
|
|
Qhov ntev |
600 × 800 × 1610 mm |
|
|
Nyhav |
~ 70 kg |
|
|
Daim ntawv ceeb toom: * Cov txiaj ntsig ntawm NB thiab WB lub zog hluav taws xob yuav tsum tsawg dua 1 kW. |
||
