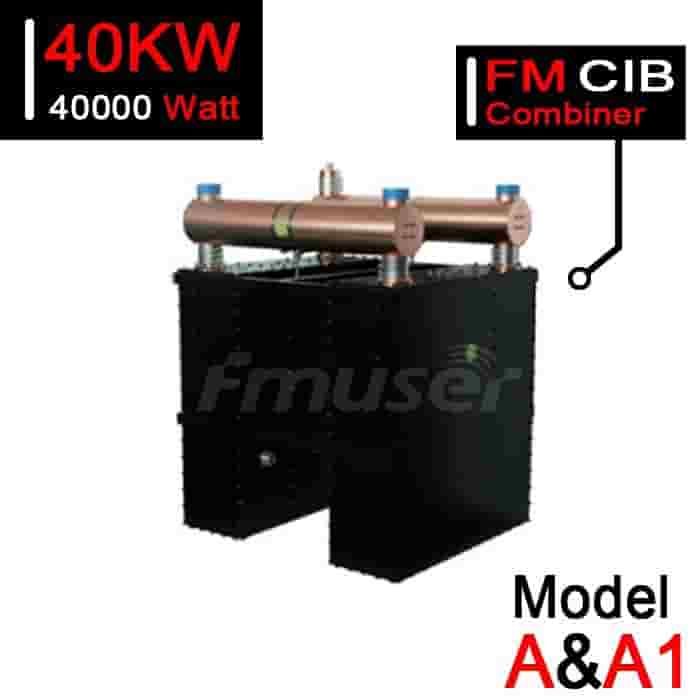

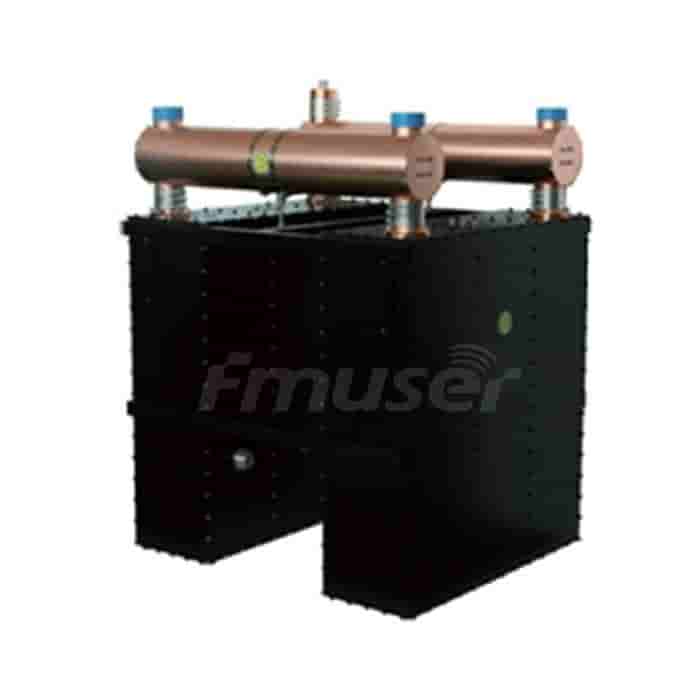

87-108MHz 40kW Compact RF Fais Fab Combiner nrog 3 1/8 "Input Solid-state FM CIB Balanced Duplexer rau Teeb Pom Kev Sib Txuas Ob Kav hlau txais xov
NTA
- Nqe (USD): Thov hu rau peb
- Qty (PCS): 1
- Shipping (USD): Thov hu rau peb
- Tag Nrho (USD): Thov hu rau peb
- Shipping Method: DHL, FedEx, UPS, EMS, Los ntawm Hiav Txwv, Los ntawm Cua
- Kev Them Nyiaj: TT (Kev Them Nyiaj Txiag), Western Union, Paypal, Payoneer
Main nta
- Tooj liab, nyiaj-plated tooj dag, thiab zoo aluminium alloy
- 3-kab noj hniav los yog 4-kab kab noj hniav lim
- Tsawg qhov ntxig poob thiab VSWR
- Kev sib cais siab
- compact tsim
- Yooj yim rau kev sib koom ua ke ntau zaus
- Redundant zog muaj peev xwm tsim
- Me me kub nce, qauv yooj yim
- Kev tsim qauv tsim, ntau yam qauv, thiab lub zog sib xyaw ua ke
Transmitter Combiners Tseem nyob hauv Tshuag
Starpoint (Branched) FM Combiners Txog 20kW:
- 7-16 DIN 1kW 4 Cavity Starpoint FM Transmitter Combiner
- 1 kW 1 5/8" 2 Cav. N-Channel FM Starpoint Combiner
- 7-16 DIN 3kW Branched Hom FM Combiner nrog 3 lossis 4 Kab
- 6kW Starpoint FM Combiner nrog 1 5/8 "Input thiab 3/4 Cavities
- 10kW 3 lossis 4-Cavity Starpoint FM Transmitter nrog 1 5/8 "Input
- 2-Txoj Kev 3 1/8 "20kW Starpoint FM Transmitter nrog 3 lossis 4 Kab noj hniav
Balanced (CIB) FM Combiners Up 120kW:
- 4kW CIB FM Combiner with 3/4 Cavities
- 4kW RF Channel Combiner nrog 3 lossis 4 Cavities thiab 7-16 DIN Input
- 4 Cavity 15kW FM Transmitter Combiner nrog 1 5/8 "Input
- 15kW FM Combiner 3 lossis 4 Cavity nrog 1 5/8 "Input
- 50kW 3/4 Cavities FM Transmitter Combiner nrog 3 1/8 "Input
- 70kW/120kW Balanced CIB FM Combiner
Nrhiav rau ntau transmitter combiners rau koj qhov chaw tshaj tawm? Tshawb xyuas cov no!
FM sib txuas | VHF Combiners | UHF Combiners | L Band Kev Sib Txuas Lus |
- 40kW FM CIB Combiner x 1PCS
Thov hu rau peb kom paub ntxiv
qauv |
A |
A1 |
|
---|---|---|---|
configuration |
IPC |
IPC |
|
zaus khwv |
87-108 MHz |
87-108 MHz |
|
Min. Qhov Sib Nqus Zaus |
1.5 MHz |
0.5 MHz * |
|
Narrowband tswv yim |
|||
Max. Tswv yim fais fab |
10 kW |
10 kW |
|
VSWR |
≤ 1.1 |
≤ 1.1 |
|
Tso tsis tau |
f0 |
0.20 dB |
0.35 dB |
f0 ± 300kHz |
0.25 dB |
0.40 dB |
|
f0 ± 2MHz |
≥ 25 dB cov |
≥ 40 dB cov |
|
f0 ± 4MHz |
≥ 40 dB cov |
≥ 60 dB cov |
|
NB to WB isolation |
≥ 35 dB cov |
≥ 35 dB cov |
|
Wideband tswv yim |
|||
Max. Tswv yim fais fab |
30 kW |
30 kW |
|
VSWR |
≤ 1.1 |
≤ 1.1 |
|
Tso tsis tau |
0.1 dB |
0.1 dB |
|
WB to NB isolation |
≥ 50 dB cov |
≥ 50 dB cov |
|
connectors |
3 1 / 8 " |
3 1 / 8 " |
|
Tus naj npawb ntawm cov kab noj hniav |
3 |
4 |
|
Qhov ntev |
955 × 880 × 1430 mm |
955 × 1145 × 1430 mm |
|
Nyhav |
~ 193 kg |
~ 229 kg |
|
Daim ntawv ceeb toom: Combiner nrog zaus sib nrug tsawg dua 0.5 MHz tuaj yeem hloov kho. |
