Vim li cas thiaj xaiv FU-618F 2KW FM Transmitter Pob rau FM Xov Tooj Cua?

FU618F-2000C yog ib qho compact FM stereo broadcasting transmitter. Advanced digital technology, digital signal processors (DSP), thiab digital direct synthesizer (DDS) yog siv nyob rau hauv lub transmitter kom ua tiav qhov me me, kev ua haujlwm siab, thiab kev ntseeg siab. Lawv tau siv dav hauv xov tooj cua tshaj lij los xa cov xov tooj cua FM xov tooj cua zoo. Nrog 1-BAY FU-DV1 Dipole Kav hlau txais xov uas yog tsim los rau cov kws tshaj lij FM tshaj tawm xov xwm kom tau txais cov hluav taws xob tso zis hluav taws xob los ntawm FM tshaj tawm xov tooj cua thiab xa tawm tau zoo. Nws tuaj yeem siv ntau lub kav hlau txais xov los tsim cov kav hlau txais xov array los txhim kho qhov nce. Ib qho yooj yim rau nruab, yooj yim-rau-siv, high-efficiency kis tau tus mob teeb liab, thiab hais txog yog cov yam ntxwv ntawm no dipole kav hlau txais xov.

Cov txiaj ntsig Koj Yuav Tsis Tau

• Lub brand-tshiab "DSP + DDS" tag nrho cov thev naus laus zis thiab kev ua tau zoo yuav ua rau koj thiab koj cov neeg tuaj saib muaj lub siab ncaj ncees CD zoo li lub suab tso tawm.
• Direct input analog thiab digital (AES / EBU) suab signals, built-in suab teeb liab limiter, tsis siv neeg lim.
• AGC circuit technology, tswj kev ruaj ntseg ntawm transmitter tso zis zog, tsib yam kev tiv thaiv kev nyab xeeb.
• High-txhais loj LCD zaub qhia tag nrho cov tsis muaj nyob rau hauv real-time.
• Advanced tej thaj chaw deb RS232 kev sib txuas lus interface.
• Compact qauv integrated 4U stainless hlau txee, anti-poob, thiab anti-oxidation.

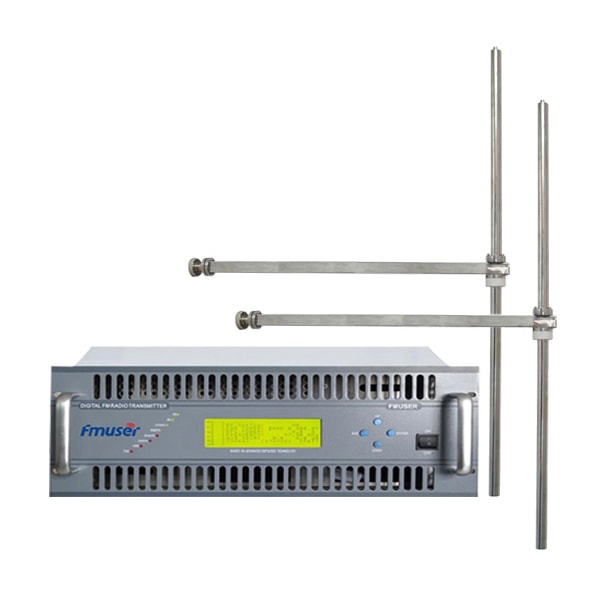

• 1 * FU618F-2000C 2KW FM transmitter
• 2 Bay FU-DV1 Dipole Kav hlau txais xov

Yam Uas Koj Yuav Tsum Paub Txog

• Tus nqi thauj khoom tau kwv yees kwv yees, thov nrog peb tham txog kev thauj khoom ua ntej tso qhov kev txiav txim.
• Txuas tus kav hlau txais xov ua ntej ua ntej txuas lub tshuab xa mus rau DC cov khoom, txwv tsis pub, lub transmitter yuav raug hlawv.

Hluav taws xob Index ntawm FU-618F 2KW FM Transmitter Pob

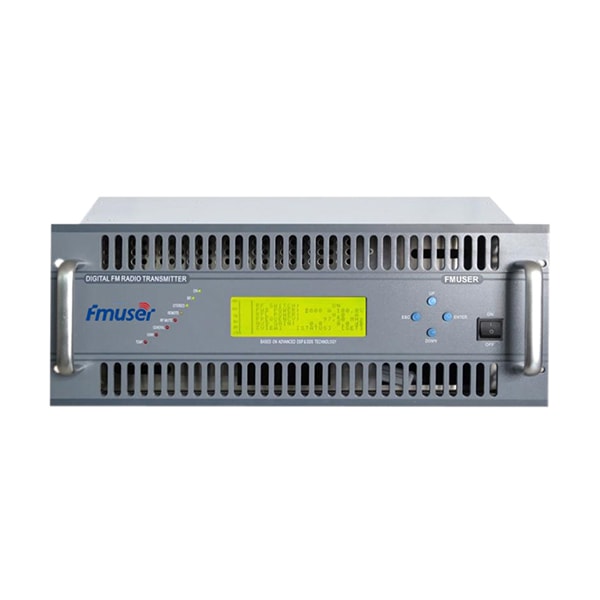

FU618F-2000C High Fais Fab FM Transmitter

• Ntau zaus: 87.0MHz ~ 108.0MHz
• Cov zis hluav taws xob: 0 ~ 2000W
• Tawm tswv yim sib txawv: < ± 10%
• Tso zis zog stability: < ± 3%
• Cov zis Load impedance: 50Ω
• RF Output Interface: 7/16 "(poj niam) los yog 7/8" Flange
• SFDR: < -70dB
• Siab Harmonic: <-65dB
• Residual Amplitude Modulation: < -50dB
• Cov neeg nqa khoom zaus Precision: ± 200Hz
• Analog Audio Input: -12dBm ～ +8dBm
• Suab Input Qib nce: -15dB ~ + 15dB, qib 0.1dB
• Suab Input Impedance: 600Ω, Balanced, XLR
• AES / EBU input impedance: 110Ω, Ntsuas, XLR
• AES / EBU cov tswv yim theem: 0.2 ~ 10Vpp
• AES / EBU tus qauv tus nqi: 30kHz ~ 96kHz
• SCA Input: Unbalance (yeem) BNC connector
• Kev qhia ua ntej: 0μS, 50μS, 75μS (yeem)
• Suab teb: ± 0.1dB (30Hz ~ 15000Hz)
• LR channel theem sib txawv: <0.1dB (100% modulation)
• Stereo Sib cais: ≥50dB 30Hz ~ 15000Hz
• Stereo S / N piv: ≥70dB 1KHz, 100% kev hloov pauv
• Distortion: ＜0.1% 30Hz ~ 15000Hz
• Txias hom: Forced Convection
• Kev ntsuas kub: -10 ℃ ～ + 45 ℃
• txheeb ze humidity: <95%; 27. Ua haujlwm siab: <4500m
• Kev siv hluav taws xob: 3300VA
• Loj: 4U, 19 '' standard, 650mm × 483mm × 177mm
• Luj: 45KG

FM-DV1 2 Bay FM Kav hlau txais xov:

Hluav taws xob Index:

• Yam khoom: FM-DV1
• Yam ntxwv impedance: 50Ω
• Zaus ntau yam: 87 ~ 108 MHz
• Kav hlau txais xov nce: 9.3dB
• Polarization: Vertical Polarization
• VSWR: <1.10 (teev zaus), “1.30 (tag nrho bandwidth)
• Rated zog: 1KW / 3KW / 5KW / 10KW
• Pab pawg matrix ua ke ntawm cov kav hlau txais xov array chav tsev tshwj xeeb yog tsim nyog rau kev tsim ntau yam ntawm cov qauv hluav taws xob
• Input Interface: L29K

Mechanical Index:

• Kom tiv taus cua load: 32kg
• Qhov siab tshaj plaws ceev: 160km / h
• Antenna Nyhav: 11kg
• Mast txoj kab uas hla: φ50-100mm
• Qhov ntev: 1360xXXUMXx1060mm
• Radiator: 304
• Inner conductor: silver plated tooj liab
• Kev them nyiaj yug rwb thaiv tsev: PTFE
• Clamp: kub-dip galvanized steel
