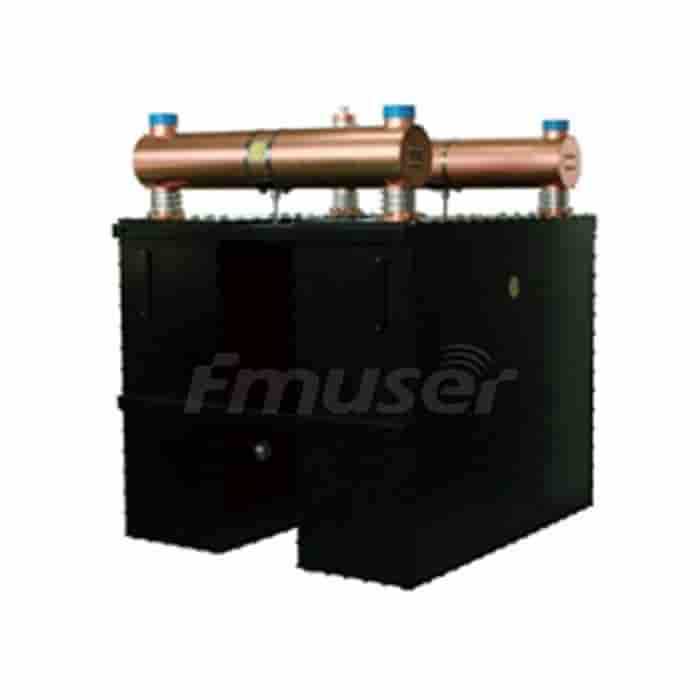

87-108 MHz 50kW 3/4 Cavities FM Transmitter Combiner Solid State Duplexer nrog 3 1/8 "Input High Power TX Combiner rau FM Xov tooj cua

NTA

  • Nqe (USD): Thov hu rau peb
  • Qty (PCS): 1
  • Shipping (USD): Thov hu rau peb
  • Tag Nrho (USD): Thov hu rau peb
  • Shipping Method: DHL, FedEx, UPS, EMS, Los ntawm Hiav Txwv, Los ntawm Cua
  • Kev Them Nyiaj: TT (Kev Them Nyiaj Txiag), Western Union, Paypal, Payoneer

Main nta

  • Tooj liab, nyiaj-plated tooj dag, thiab zoo aluminium alloy
  • 3-kab noj hniav los yog 4-kab kab noj hniav lim
  • Tsawg qhov ntxig poob thiab VSWR
  • Kev sib cais siab
  • compact tsim
  • Yooj yim rau kev sib koom ua ke ntau zaus
  • Redundant zog muaj peev xwm tsim
  • Me me kub nce, qauv yooj yim
  • Kev tsim qauv tsim, ntau yam qauv, thiab lub zog sib xyaw ua ke

Transmitter Combiners Tseem nyob hauv Tshuag

Starpoint (Branched) FM Combiners Txog 20kW:

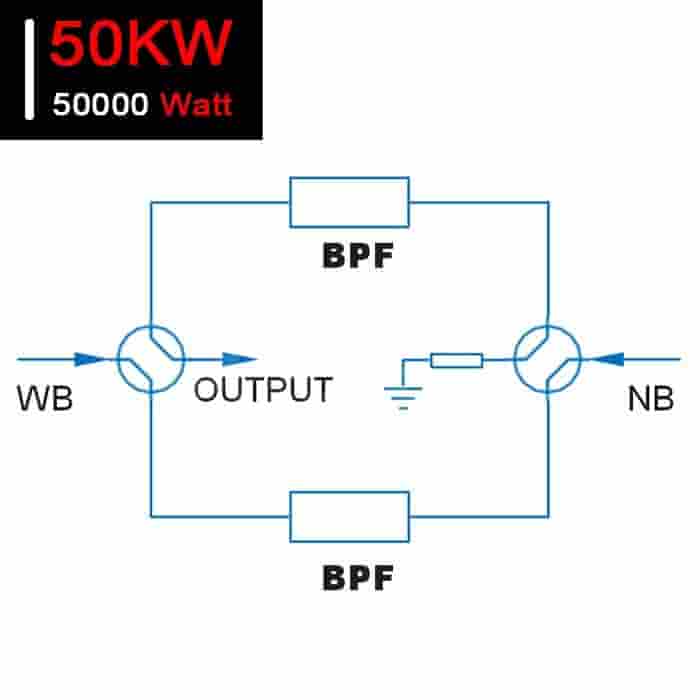

Balanced (CIB) FM Combiners Up 120kW:





Nrhiav rau ntau transmitter combiners rau koj qhov chaw tshaj tawm? Tshawb xyuas cov no!



87-108 MHz 1kW 1 5/8" 2 Cav. N-Channel FM Starpoint Combiner Xov tooj cua Repeater Duplexer High Power Radio Combiner rau FM Chaw nres tsheb 167-223 MHz 4 lossis 6 Cav. 7/16 DIN 1kW Starpoint VHF Transmitter Combiner Compact 6 Cavity Duplexer TX RX Duplexer rau TV Station 470-862 MHz 7/16 DIN 1kW Khoom Lub Xeev UHF Transmitter Combiner Starpoint Compact 1000W 6 Cavity Duplexer rau TV tshaj tawm 1452-1492 MHz 1 5/8 "6 Cavity 4kW L Band RF Combiner Compact Digital 3 Channel Combiner Solid-state RF Triplexer rau TV Chaw Nres Tsheb
FM sib txuas VHF Combiners UHF Combiners L Band Kev Sib Txuas Lus

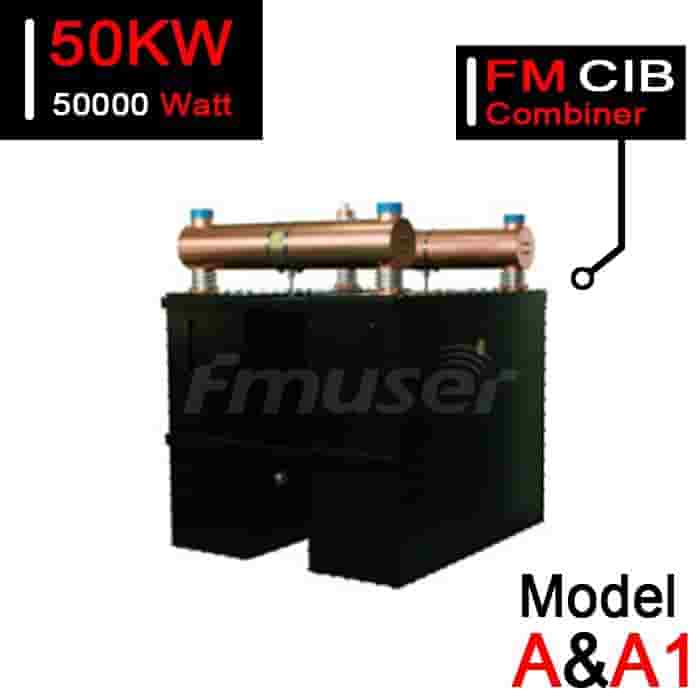

  • 50kW FM CIB Combiner x 1PCS



Thov hu rau peb kom paub ntxiv

qauv

A

A1

configuration

IPC

IPC

zaus khwv

87-108 MHz

87-108 MHz

Min. Qhov Sib Nqus Zaus

1.5 MHz

0.5 MHz *

Narrowband tswv yim

Max. Tswv yim fais fab

20 kW

20 * kW

VSWR

≤ 1.1

≤ 1.1

Tso tsis tau

f0

0.15 dB

0.25 dB

f0 ± 300kHz

0.15 dB

0.30 dB

f0 ± 2MHz

≥ 25 dB cov

≥ 40 dB cov

f0 ± 4MHz

≥ 40 dB cov

≥ 60 dB cov

NB to WB isolation

≥ 35 dB cov

≥ 35 dB cov

Wideband tswv yim

Max. Tswv yim fais fab

50 kW **

50 kW **

VSWR

≤ 1.1

≤ 1.1

Tso tsis tau

0.1 dB

0.1 dB

WB to NB isolation

≥ 50 dB cov

≥ 50 dB cov

connectors

3 1 / 8 "

3 1 / 8 "

Tus naj npawb ntawm cov kab noj hniav

3

4

Qhov ntev

1150 × 1000 × 1330 mm

1550 × 790 × 1330 mm

Nyhav

~ 259 kg

~ 322 kg

Daim ntawv ceeb toom:

* Kev sib txuas nrog zaus sib nrug tsawg dua 0.5 MHz tuaj yeem hloov kho.

** Qhov sum ntawm NB thiab WB input zog yuav tsum tsawg tshaj li 50kW.
